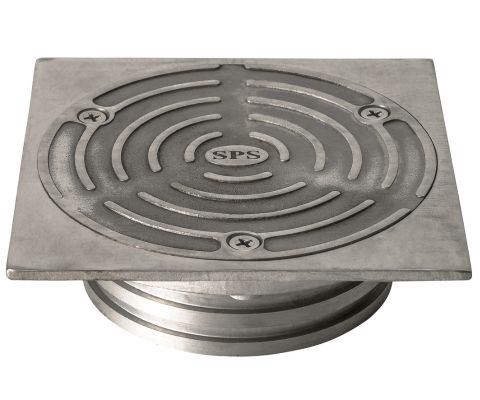

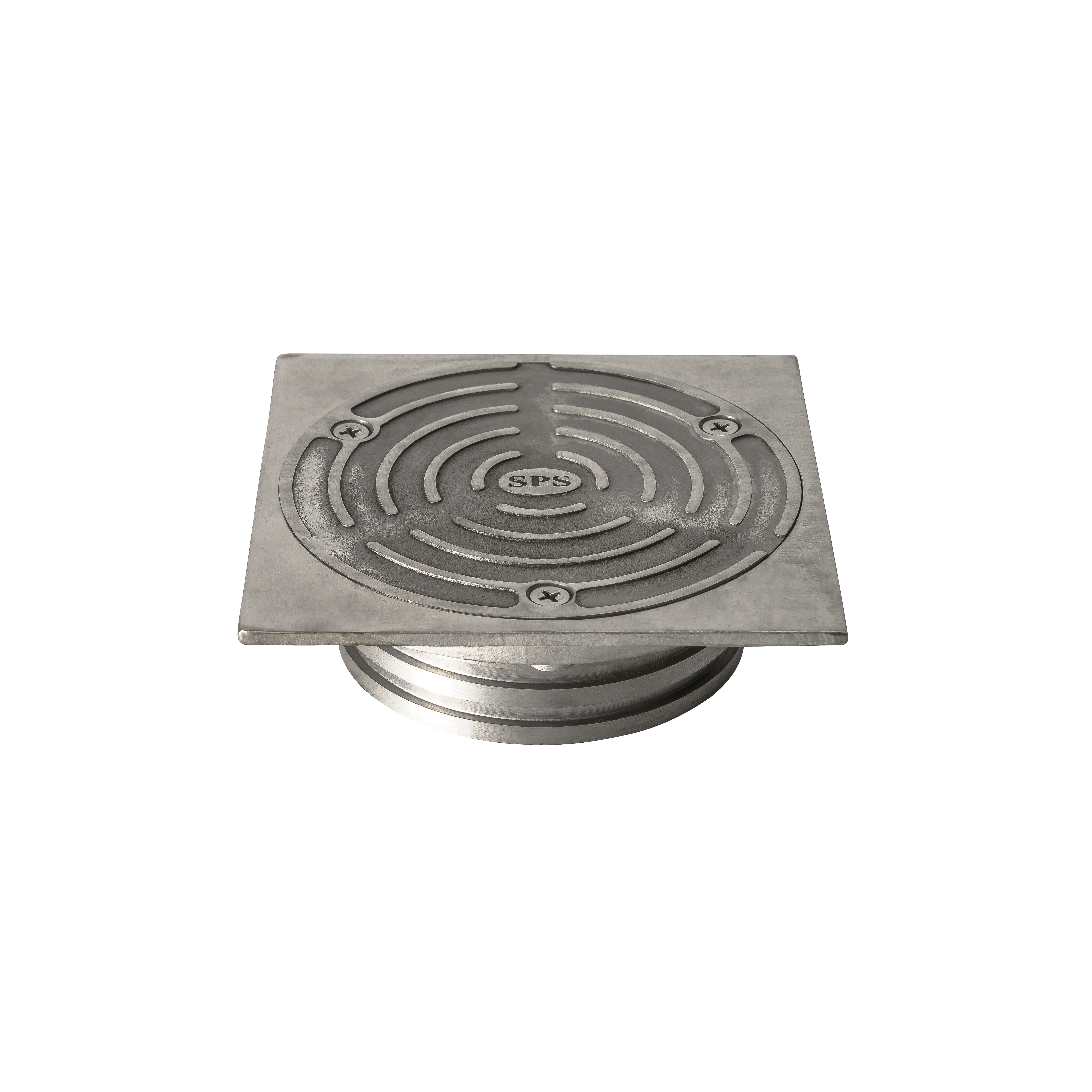

SPS 130SCRN 130mm square non-slip 316 S/S cleanout push-in 100mm

Q130SCRN    CAD File

Features

  • Grate Size: 130mm
  • Outlet Pipe Size: 100mm
  • Outlet Direction: Vertical
  • Shape: Square with round insert
  • Surface finish: Non-Slip
  • Grate Material: 316 stainless steel
  • Body Material: 316 stainless steel
  • Grate Type: Flat
  • Heel Proof: Yes
  • Push-in: Yes
  • Lid: Gas tight
  • Pipe Compatible: PVC, HDPE, Copper
  • Optional: Security screws
  • Watermark Certification AT55200:040
  • Also available:
    • 304 stainless steel polished surface
