"Truflo" Body & Reversible Clamping Collar
The “Truflo” Body can be used in conjunction with a reversible clamp collar. This combination allows the unit to be height adjustable to suit various flooring types. This combination is suitable for use with or without a membrane.

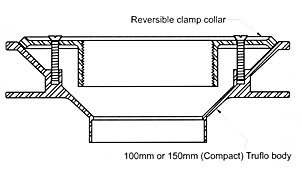

TYPICAL APPLICATION

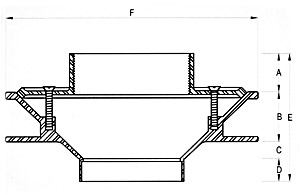

DIMENSIONAL DATA
|
DIMENSIONS |
||||||
| NB | A | B | C | D | E | F |
| 100mm | 35 | 44 | 26 | 25 | 130 | 260 |
| 150mm | 35 | 44 | 8 | 28 | 80 | 260 |

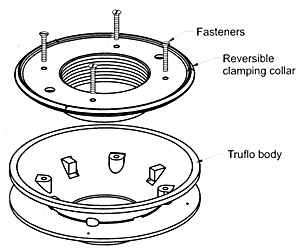

Exploded View
| Key: BR = Bronze, CI = Cast Iron | ||
|---|---|---|
| COMPONENTRY TABLE (Part Numbers) | ||
| Outlet size (mm) | 100mm | 150mm |
| "Truflo" Body (BR) | RW901 | RW902 |
| "Truflo" Body (CI) | RW901CI | RW902CI |
| Reversible Clamp Collar (BR) | RW887 | RW887 |
| Reversible Clamp Collar (CI) | RW887CI | RW887CI |
| COMPLETE UNITS (BODY & DOME GRATE) - (Part Numbers) | ||
| Outlet Size | 100mm | 150mm |
| 150mm Square Vari Level Drain (NB) | RW911 | RW911 |
| 150mm Square Vari Level Drain (S/S) | RW984 | RW984 |
| 150mm Round Vari Level Drain (S/S) | RW994 | RW994 |
| 200mm Square Vari Level Drain (BR) | RW990 | RW990 |
| 200mm Square Vari Level Drain (NB) | RW886 | RW886 |
| 200mm Square Vari Level Drain (S/S) | RW989 | RW989 |
| 225mm Round Vari Level Drain (NB) | RW888 | RW888 |
| 225mm Round Vari Level Drain (S/S) | RW988 | RW988 |
| Hub Coupling | RW896 | RW897 |
| Stainless Steel Sediment Basket | RW894 | RW895 |
| AVAILABLE IN THE FOLLOWING OUTLET SIZES | ||
| Nominal Bore Size | 100mm | 150mm |
| Suitable for brazing to Copper | Yes | Yes |
| Suitable for fitting to PVC | Yes | Yes |
