225mm Round Vari Level Drain
The 225mm round vari level drain is available in cast bronze, or stainless steel. The grate is available in a selection of finishes(see componentry table). This drain can be made height adjustable when used in conjunction with a “Truflo Body” and “Reversible Clamp Collar”, or with a “Retrofit Bucket Trap”. A membrane can also be fitted when used in conjunction with the options outlined above.

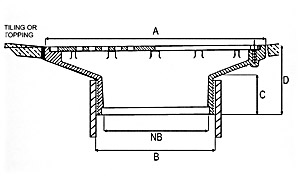

DIMENSIONAL DATA
|
DIMENSIONS |
||||
| NB | A | B | C | D |
| 100mm | 225 | 4″BSP | 40 | 70 |
| 150mm | 225 | 6″BSP | 42 | 70 |

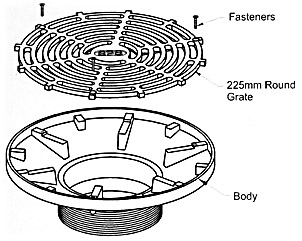

EXPLODED VIEW
| Key: BR = Bronze, S/S = Stainless Steel, CI = Cast Iron, NB = Nickel Bronze | ||
|---|---|---|
| COMPONENTRY TABLE (Part Numbers) | ||
| Outlet size (mm) | 100mm | 150mm |
| 225mm Round Vari Level Drain (NB) | RW888 | |
| 225mm Round Vari Level Drain (S/S) | RW988 | RW993 |
| OPTIONAL EXTRAS FOR 225mm ROUND VARI LEVEL DRAIN | ||
| Outlet Size | 100mm | 150mm |
| Stainless Steel Sediment Basket | RW894 | RW895 |
| Extension for 100mm outlets (BR) | RW915 | |
| 100mm Truflo Body (BR) | RW901 | |
| 100mm Truflo Body (CI) | RW901CI | |
| 150mm Truflo Body (BR) | RW902 | |
| 150mm Truflo Body (CI) | RW902CI | |
| Reversible Clamp Collar (BR) | RW887 | |
| Reversible Clamo Collar (CI) | RW887CI | |
| 100mm Retro Fit Bucket Trap (BR) | RW914 | RW890 |
| Clamp Ring (BR) | RW910 | RW909 |
| 100mm Hub Coupling (for Truflo or Bucket Trap) | RW896 | |
| 150mm Hub Coupling (for Truflo or Bucket Trap) | RW897 | RW897 |
| AVAILABLE IN THE FOLLOWING OUTLET SIZES | ||
| Nominal Bore Size | 100mm | |
| Suitable for brazing to Copper | Yes | |
| Suitable for fitting to 4" female BSP female thread | Yes | |
| * See also "Retro Fit Bucket Trap" and "Reversible Clamp Collar" with Truflo Body. |
