150mm Square Vari Level Drain
The 150mm square vari level drain is available in cast bronze, or stainless steel. The grate is available in a selection of finishes(see componentry table). This drain can be made height adjustable when used in conjunction with a “Truflo Body” and “Reversable Clamp Collar”, or with a “Retrofit Bucket Trap”. A membrane can also be fitted when used in conjunction with the options outlined above.

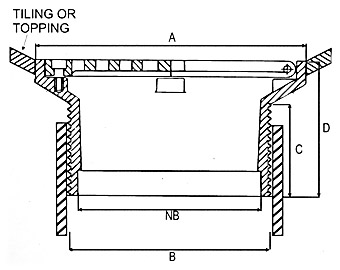

TYPICAL APPLICATION
| DIMENSIONS | ||||
|---|---|---|---|---|
| NB | A | B | C | D |
| 100mm | 150 | 4"BSP | 50 | 75 |

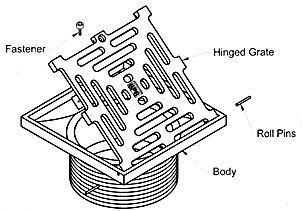

EXPLODED VIEW
| Key: BR = Bronze, S/S = Stainless Steel, CI = Cast Iron, NB = Nickel Bronze | |
|---|---|
| COMPONENTRY TABLES (Part Numbers) | |
| Outlet size (mm) | 100mm |
| 150mm Square Grate Unit (NB) | RW911 |
| 150mm Square Grate Unit (S/S) | RW984 |
| OPTIONAL EXTRAS FOR 150mm SQUARE VARI LEVEL DRAIN (Part Numbers) | |
| Outlet Size | 100mm |
| Stainless Steel Sediment Basket | RW894 |
| Extension for 100mm outlets (BR) | RW915 |
| 100mm Truflo Body (BR) | RW901 |
| 100mm Truflo Body (CI) | RW901CI |
| 150mm Truflo Body (BR) | RW902 |
| 150mm Truflo Body (CI) | RW902CI |
| Reversible Clamp Collar (BR) | RW887 |
| Reversible Clamp Collar (CI) | RW887CI |
| Retro Fit Bucket Trap (BR) | RW914 |
| Clamp Ring (BR) | RW910 |
| 100mm Hub Coupling (for truflo or bucket trap) | RW896 |
| 150mm Hub Coupling (for truflo) | RW897 |
| AVAILABLE IN THE FOLLOWING OUTLET SIZES | |
| Nominal Bore Size | 100mm |
| Suitable for brazing to Copper | Yes |
| Suitable for fitting to female 4" female BSP | Yes |
* See also “Retro Fit Bucket Traps” and “Reversible Clamp Collar” with a Truflo Body.
