150mm Square "Push In" Drain
Cast bronze or stainless steel drain. The 150mm square unit is available in a selection of finishes (see componentry Table). This unit has an “O” ring fitted fitted to the spigot for easy “Push In” connection to PVC pipe.

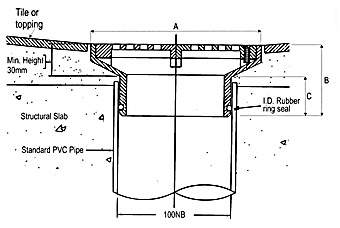

TYPICAL APPLICATION
| DIMENSIONS | |||
|---|---|---|---|
| NB | A | B | C |
| 100mm | 150 | 65 | 35 |

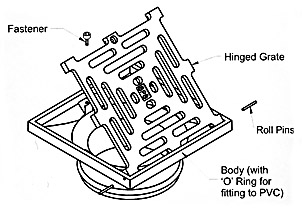

EXPLODED VIEW
| Key: BR = Bronze, S/S = Stainless Steel, NB = Nickel Bronze | |
|---|---|
| COMPONENTRY TABLE (Part Numbers) | |
| Outlet size (mm) | 100mm |
| 150mm Square Grate Unit (BR) | RW986 |
| 150mm Square Grate Unit (NB) | RW995 |
| 150mm Square Grate Unit (S/S) | RW985 |
| OPTIONAL EXTRAS FOR 150mm SQUARE "PUSH IN" DRAIN (Part Numbers) | |
| Outlet Size | 100mm |
| Stainless Steel Sediment Basket | RW894 |
