150mm Round "Push In" Drain
This stainless steel drain has two “O” rings fitted to the spigot for easy “Push In” connection to PVC pipe. The 150mm round “Push In” unit is available in a selection of finishes (see componentry table).

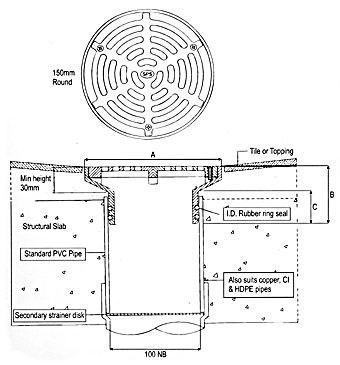

DIMENSIONAL DATA
|
DIMENSIONS |
|||
| NB | A | B | C |
| 100mm | 150 | 65 | 35 |
| Key: BR = Bronze, S/S = Stainless Steel, NB = Nickel Bronze | |
|---|---|
| COMPONENTRY TABLE (Part Numbers) | |
| Outlet size (mm) | 100mm |
| 150mm Round Grate Unit (BR) | RW997 |
| 150mm Round Grate Unit (NB) | RW996 |
| 150mm Round Grate Unit (S/S) | RW998 |
| OPTIONAL EXTRAS FOR 150mm ROUND "PUSH IN" DRAIN (Part Numbers) | |
| Outlet Size | 100mm |
| Stainless Steel Sediment Basket | RW894 |
