100mm Square Vari Level Drain
Cast gunmetal bronze rainwater outlet for use with or without a membrane. The 100mm square grate is available in a selection of finishes (see componentry table). This drain can be made height adjustable when fitted into a 65mm flashing flange.

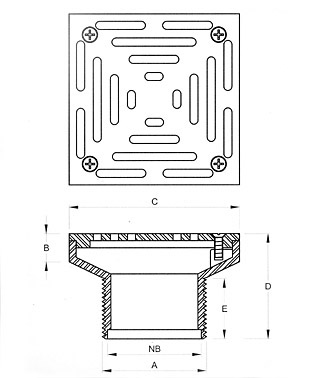

DIMENSIONAL DATA
|
DIMENSIONS |
|||||
| NB | A | B | C | D | E |
| 50mm | 2″BSP | 24 | 100 | 62 | 35 |

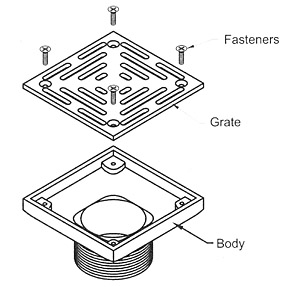

EXPLODED VIEW
| Key: BR = Bronze, CP = Chrome Plate | |
|---|---|
| COMPONENTRY TABLES (Part Numbers) | |
| Outlet size (mm) | 50mm |
| 100mm Square Grate Unit (CP = Grate, BR = Body) | RW848 |
| OPTIONAL EXTRAS FOR 100mm SQUARE VARI LEVEL DRAIN (Part Numbers) | |
| Outlet Size | 50mm |
| 65mm Flashing Flange | RW841 |
