100mm Square "Push In" Drain
This stainless steel drain has an “O” ring fitted to the spigot for easy “Push In” connection to PVC pipe.

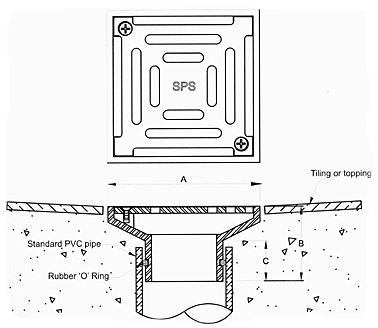

DIMENSIONAL DATA
| DIMENSIONS | |||
|---|---|---|---|
| NB | A | B | C |
| 50mm | 100 | 46 | 25 |
| Key: S/S = Stainless Steel | |
|---|---|
| COMPONENTRY TABLES (Part Numbers) | |
| Outlet size (mm) | 50mm |
| 100mm Square Grate Unit (S/S = Grate, S/S = Body) | RW832 |
