100mm Round Vari Level Drain
Cast gunmetal bronze rainwater outlet for use with or without a membrane. The 100mm round grate is available in a selection of finishes (see componentry table). This drain can be made height adjustable and can also be fitted with a membrane when used in conjunction with a “65mm Flashing Flange”.

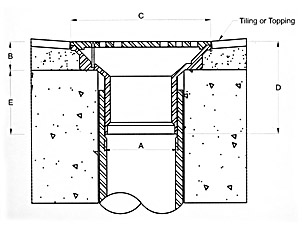

TYPICAL APPLICATION
| DIMENSIONS | |||||
|---|---|---|---|---|---|
| NB | A | B | C | D | E |
| 50mm | 2"BSP | 24 | 114 | 76 | 50 |

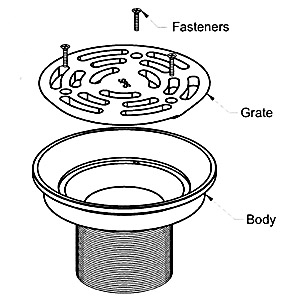

EXPLODED VIEW
| Key: BR = Bronze, CP = Chrome Plate, CI = Cast Iron | |
|---|---|
| COMPONENTRY TABLES (Part Numbers) | |
| Outlet size (mm) | 50mm |
| 100mm Round Grate Unit (CP = Grate, BR = Body) | RW849 |
| OPTIONAL EXTRAS FOR 100mm ROUND VARI LEVEL DRAIN (Part Numbers) | |
| Outlet Size | 50mm |
| 65mm Flashing Flange | RW841 |
