100mm Retro Fit Bucket Trap
The retro fit bucket trap comes in a cast gunmetal bronze finish. This unit is suitable for fitting into precast concrete or timber flooring. The bucket trap can be used with or without a membrane. The female BSP thread allows for height adjustment to a variety of upper units (refer to optional extras).

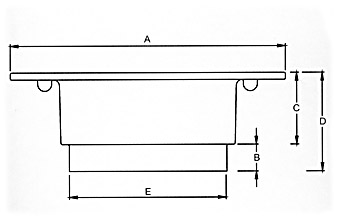

DIMENSIONAL DATA
|
DIMENSIONS |
|||||
| NB | A | B | C | D | E |
| 100mm | 195 | 20 | 55 | 75 | OD110 |
| Key: BR = Bronze, AB2BR = AB2 Bronze, S/S = Stainless Steel, CI = Cast Iron, NB = Nickel Bronze | |
|---|---|
| COMPONENTRY TABLE (Part Numbers) | |
| Outlet size (mm) | 100mm |
| Retro Fit Bucket Trap (BR) | RW914 |
| OPTIONAL EXTRAS FOR 100mm RETRO FIT BUCKET TRAP (Part Numbers) | |
| Outlet Size | 100mm |
| Hub Coupling Ring | RW896 |
| Extension | RW915 |
| 150mm Square Vari Level Drain (NB) | RW911 |
| 150mm Square Vari Level Drain (S/S) | RW984 |
| 150mm Round Vari Level Drain (S/S) | RW994 |
| 200mm Square Vari Level Drain (NB) | RW886 |
| 200mm Square Vari Level Drain (S/S) | RW989 |
| 200mm Square Vari Level Drain (BR) | RW990 |
| 225mm Round Vari Level Drain (NB) | RW888 |
| 225mm Round Vari Level Drain (S/S) | RW988 |
| Clamp Ring (BR) | RW910 |
| Stainless Steel Sediment Basket | RW894 |
| AVAILABLE IN THE FOLLOWING OUTLET SIZES | |
| Nominal Bore Size | 100mm |
| Suitable for brazing to Copper | Yes |
| Suitable for fitting to PVC | Yes |
