Parapet or Scupper Drain
The “Parapet” or “Scupper” drain is suitable for use either for horizontal or vertical discharge from parapet walls. This unit can be used either with or without a waterproof membrane. Available in either cast bronze or cast iron. The cast iron option is only suitable for fitting to PVC pipe.

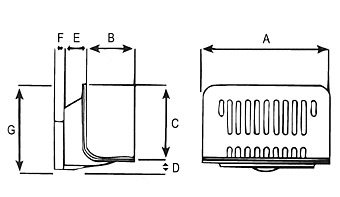

DIMENSIONAL DATA
| DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|
| NB | A | B | C | D | E | F | G |
| 80mm | 280 | 105 | 160 | 20 | 55 | 20 | 185 |
| 100mm | 280 | 105 | 160 | 20 | 55 | 20 | 185 |
| Key: BR = Bronze, CI = Cast Iron | ||
|---|---|---|
| COMPONENTRY TABLES (Part Numbers) | ||
| Outlet size (mm) | 80mm | 100mm |
| Grate (BR) | RW892G | RW892G |
| Grate (CI) | RW892GC | RW892GC |
| Body (BR) | RW892B | RW893B |
| Body (CI) | RW892BCI | RW893BCI |
| Complete Body & Grate (BR) | RW892 | RW893 |
| Complete Body & Grate (CI) | RW892CI | RW893CI |
| OPTIONAL EXTRAS FOR PARAPET/SCUPPER DRAINS (Part Numbers) | ||
| Outlet Sizes | 80mm | 100mm |
| Hub Coupling | RW898 | RW896 |
| AVAILABLE IN THE FOLLOWING OUTLET SIZES | ||
| Nominal Bore Size | 80mm | 100mm |
| Suitable for brazing to Copper | Yes | Yes |
| Suitable for fitting to PVC if utilising a hub coupling | Yes | Yes |
