Balcony & Multi Purpose Small Drain - Square

Cast bronze construction throughout. Square grate is available in LG2 bronze finish and nickel bronze finish.

Suggested Applications: – Can be set into concrete, or ply decks and balconies

Nominal bore 50mm. To suit copper pipe 50Ø O.D. Flashing flange can be fitted to make the body height adjustable.

I.D. of flange is bored to suit 65Ø O.D. copper or brass. The outside diameter of the flange spigot fits 65Ø female P.V.C. socket.

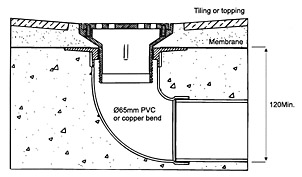

TYPICAL APPLICATION

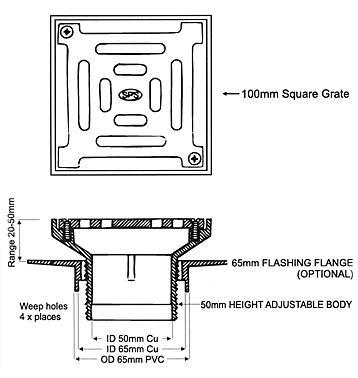

DIMENSIONAL DATA
