Balcony & Multi Purpose Small Drain - Round
Cast bronze construction throughout. The round grate is available in LG2 bronze finish and nickel bronze finish.
Suggested Applications:- Can be set into concrete, or ply decks and balconies
Nominal bore 50mm. To suit copper pipe 50Ø O.D. Flashing flange can be fitted to make the body height adjustable.
I.D. of flange is bored to suit 65Ø O.D. copper or brass. The outside diameter of the flange spigot fits 65Ø female P.V.C. socket.

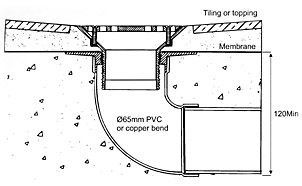

TYPICAL APPLICATION

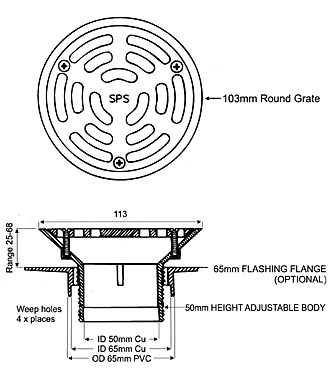

DIMENSIONAL DATA
| Key: LG2 = Bronze, NB = Nickel Bronze, S/S = Stainless Steel | |
|---|---|
| COMPONENTRY TABLES (Part Numbers) | |
| Outlet size (mm) | 50mm |
| Flat Round Grate (LG2) | RW840G |
| Flat Round Grate (NB) | RW916G |
| Body (NB) | RW961B |
| Body (LG2) | RW840B |
| Complete Unit, Grate (LG2), Body (LG2) | RW840 |
| Complete Unit, Grate (NB), Body (NB) | RW961 |
| Complete Unit, Grate (S/S), Body (S/S) | RW961SS |
| OPTIONAL EXTRAS FOR 50mm BALCONY DRAIN (Part Numbers) | |
| 65mm Adjustable Flashing Flange | RW841 |
| Compact 90° Elbow | RW919 |
