Vari Level Low Grime Vinyl Floor Waste
Low grime drain available in cast bronze construction throughout. The grate and clamp ring are finished in high polish chrome plate, with stainless steel screws for fastening.

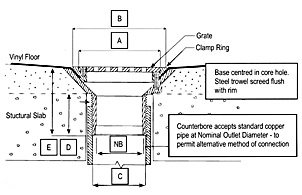

TYPICAL APPLICATION
| DIMENSIONAL DATA (mm) |
|||||
| NB | ØA | ØB | ØC | D | E |
| 50 | 102 | 113 | 2″BSP | 46 | 72 |
| 65 | 102 | 137 | 2½”BSP | 23 | 45 |
| 150 | 217 | 240 | 6″BSP | 35 | 82 |

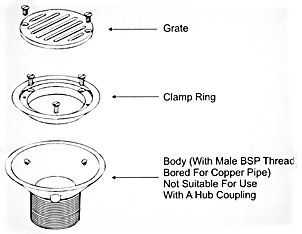

EXPLODED VIEW
| Key: BR=Bronze, CP = Chrome Plated, S/S = Stainless Steel | |||
|---|---|---|---|
| COMPONENTRY TABLES (Part Numbers) | |||
| Outlet size (mm) | 50mm | 65mm | 150mm |
| Grate (CP) | RW839G | RW839G | RW842G |
| Grate (S/S) | RW970G | ||
| Clamp Ring(CP) | RW839R | RW839R | RW842R |
| Clamp Ring (S/S) | RW970R | ||
| Body(BR) | RW845 | RW846 | RW847 |
| Body (S/S) | RW970B | ||
| COMPLETE UNIT (BODY, GRATE, CLAMP RING) | |||
| Outlet Size | 50mm | 65mm | 150mm |
| Body (BR), Grate (CP), Clamp Ring (CP) | RW839 | RW916 | RW842 |
| Body (S/S), Grate (S/S), Clamp Ring (S/S) | RW970 | ||
| OPTIONAL EXTRAS FOR VARI LEVEL LOW GRIME (Part Numbers) | |||
| Outlet Sizes | 50mm | 65mm | 150mm |
| Compact 90° Elbow | RW919 | RW919 | |
| Sediment Basket | RW895 | ||
| Adjustable Flashing Flange | RW841 |
