"Push In" Low Grime Vinyl Floor Waste
This unit has an “O” ring fitted to the spigot for easy “Push In” connection to PVC pipe. Available in cast bronze construction throughout. The grate and clamp ring are finished in high polish chrome plate, with stainless steel screws for fastening.

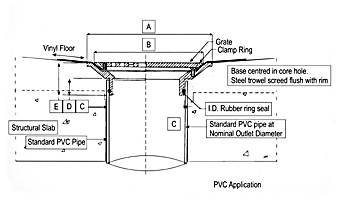

TYPICAL APPLICATION
| DIMENSIONAL DATA (mm) |
|||||
| NB | A | B | C | D | E |
| 50mm PVC |
112 | 100 | 50 | 25 | 47 |
| 80mm PVC |
143 | 125 | 75 | 25 | 57 |
| 100mm PVC |
178 | 155 | 97 | 25 | 47 |

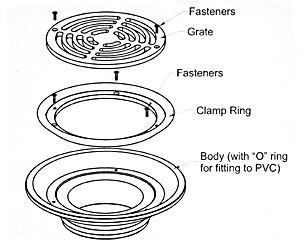

EXPLODED VIEW
| Key: BR=Bronze, CP = Chrome Plated, S/S = Stainless Steel, NB = Nickel Bronze | |||
|---|---|---|---|
| COMPONENTRY TABLES (Part Numbers) | |||
| Outlet size (mm) | 50mm | 80mm | 100mm |
| Grate (CP) | RW838G | RW837G | |
| Grate (NB) | RW878G | RW971G | |
| Grate (S/S) | RW991G | RW979G | RW972G |
| Clamp Ring(CP) | RW838R | RW837R | |
| Clamp Ring (NB) | RW878R | RW971R | |
| Clamp Ring (S/S) | RW991R | RW979R | RW972R |
| Body(BR) | RW977 | RW978B | |
| Body (S/S) | RW991B | RW979B | RW972B |
| COMPLETE UNIT (BODY, GRATE, CLAMP RING) | |||
| Outlet Size | 50mm | 80mm | 100mm |
| Body (BR), Grate (CP), Clamp Ring (CP) | RW838 | RW978 | |
| Body (BR),Grate (NB), Clamp Ring (NB) | RW878 | RW980 | |
| Body (S/S), Grate (S/S), Clamp Ring (S/S) | RW991 | RW979 | RW981 |
| OPTIONAL EXTRAS FOR "PUSH IN" LOW GRIME (Part Numbers) | |||
| Outlet Sizes | 50mm | 80mm | 100mm |
| Stainless Steel Sediment Basket | RW894 | ||
| Raised Ring | RW976 | ||
| Blank Grate (CP) | RW982 | RW973 | |
| Blank Grate (NB) | RW983 | RW974 | |
| Blank Grate (S/S) | RW975 |
